Shower Door Hinge Repair in Cincinnati, OH

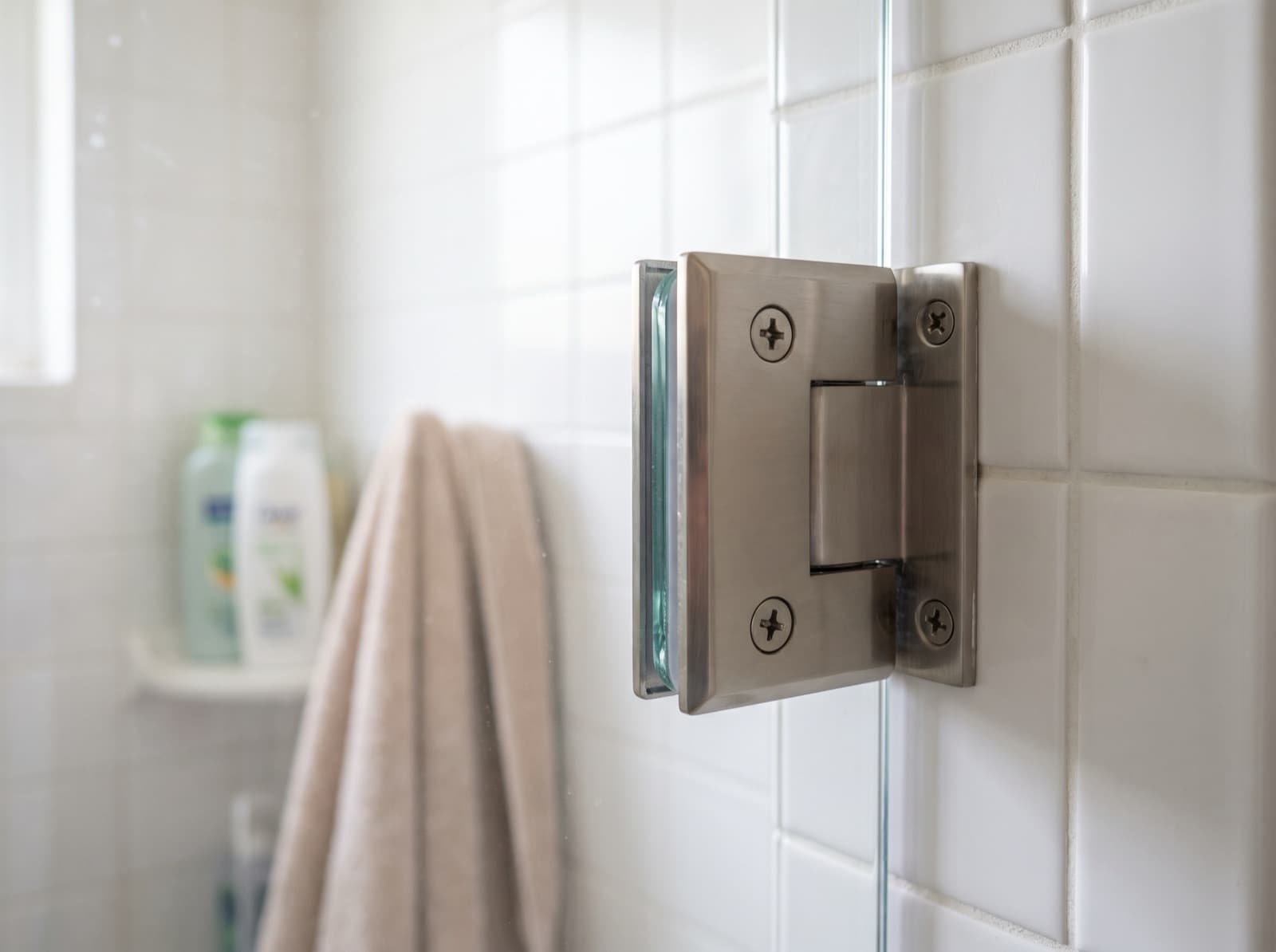

On a hinged glass door, the hinges hold the entire weight of the panel. They clamp the glass through holes or notches cut into it, and they mount either to the wall or to a fixed glass panel beside the door.

Many frameless hinges are self-centering, meaning a spring or cam brings the door back to its closed position. When that mechanism wears, or the hinge loosens on the wall or glass, the door stops closing where it should.

That is why hinge problems get worse rather than better. A small sag puts extra load on the hinge, the seal and the glass edge every time the door swings.

• Sagging or dragging. The latch side of the door drops and rubs the curb, the sweep or the fixed panel.
• Won't stay closed, or swings open. The door drifts open, bounces past closed, or no longer returns to center.
• Loose hinges. You can see movement where the hinge meets the wall or glass.
• Corrosion. Pitting, flaking finish or white mineral crust around the hinge body and screws.
• Leaking at the hinges. Water shows up on the floor near the hinge side. Dulles Glass, a shower door maker, says that if silicone has lifted around hinge plates or moisture is present, it is time to schedule service rather than working near load-bearing hinge hardware yourself.

Some hinge problems are adjustments: re-tightening, re-shimming the glass in the clamp, or re-setting a door that has shifted. Others need shower door hinge replacement, usually when the hinge is corroded, the spring or cam has failed, or the mounting threads are stripped.

Replacement shower door hinges have to match more than the finish. They need to fit your glass thickness, your door angle (wall-to-glass or glass-to-glass) and the holes already cut in the glass, because tempered glass can't be re-drilled on site. That matching is the main reason to send photos first.

If the glass edge near a hinge is chipped, the panel may need replacing rather than re-hanging. For seals, sweeps and other parts, see shower door repair.

Shower door hinges carry a maximum door weight and door width, and C.R. Laurence (CRL), a major glass hardware maker, tells installers not to exceed either one. Two examples from CRL's own spec pages, both for 3/8 to 1/2 in. glass:

• CRL Vienna 90 degree hinge: two hinges hold up to 110 lbs. on a door up to 36 in. wide; three hinges hold up to 140 lbs. at the same width.
• CRL Plymouth 180 degree hinge: two hinges hold up to 140 lbs. on a door up to 39 in. wide, and CRL says not to use three.

The takeaway: a wide or thick door may need a different hinge, or a third hinge, to stay level. A door that sags soon after install is sometimes a sign the hinges are under-rated for the glass. An installer can check the rating against your door before replacing anything.

Cincinnati water is moderately hard, roughly 7 to 8 grains per gallon on average at the Greater Cincinnati Water Works plants (approximate figure, as reported by Culligan citing GCWW). Mineral deposits collect around hinge bodies and screw heads, and over time they can work into the finish.

The instinct is to scrub with a strong descaler, but Dulles Glass lists acidic descalers and abrasive pads as products to avoid on hardware. A daily squeegee and a pH-neutral cleaner keep frameless shower door hinge repair from turning into hinge replacement.

Many homes here also have bathrooms that were updated with heavy frameless glass years after the house was built. Census data puts the median home in the middle Cincinnati-area zip at around 1978, so it is worth checking that the wall behind the hinges was set up to carry that weight.

Call (513) 206-9091 or request a quote, and you'll talk with a local shower door installer. Have ready:

• A photo of the whole door, closed, showing the gap or sag.
• A close-up of each hinge, including any brand mark.
• The door width and, if you know it, the glass thickness.
• Whether the hinges mount to the wall or to a fixed glass panel.
• When the problem started and whether it is getting worse.
